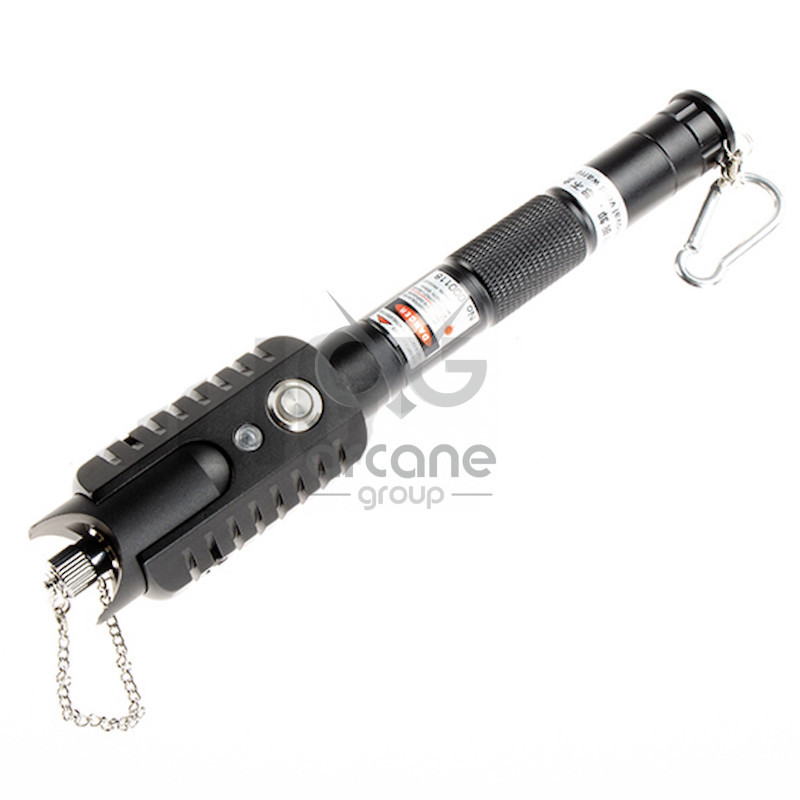

Visual Fault Locator RUGGED-TYPE

The Visual Fault Locator can be operated in either continuous wave mode (CW mode) or in pulsed mode. Pulsed mode aids in locating faults under high ambient light conditions and improve battery life. It also could be used in checking connector quality. Often a connector may appears to be perfect. But inside the connector ferrule itself, poor gluing or dirty may create a microbend in the fiber. This microbend will produce excess insertion losses or return losses,and may result in premature failure of the connector. As the visual light launches through the fiber, it emerges from the connector in question, one can readily see the distortion as a series of rings superimposed on a normal output. Bending or twisting the fiber may affect the overall intensity pattern, but not the ring pattern itself.

Application
· Maintenance in telecom, CATV
· Test Lab of optical fibers
· Fiber routing and continuity checking in optical networks
· Other fiber optic measurements

Feature
· adopt high quality triangular laser chip, life 8000-8000 hours
· Use APC circuit, constant power output and battery pack design
· Low power LED display, display more intuitive
· Is normally on, flash (9 hz), slow flash (3 hz) three work modes
· Overall style resembles transformers, hale, devices are strong
· Shell parts for aluminum alloy material, the surface anodic oxidation bright black, buttons for stainless steel 316, grain surface car light
· Products increase the heatsink, multiple electrostatic protection, power is more stable
· 2.5mm universal connector,for 1.25mm connectors, FC(male)-LC(Female) adaptor also can be provided on request
· Operates either in CW or Pulsed mode with constant output power
· Long battery life (up to 60 hours)
· Drop-resistant and dust-proof design of laser head
· Laser case ground design prevents ESD damage
· Portable and rugged / reinforced
· Easy to use
