Cable Mesh EG Straight U – 30mm Height – Ø 4mm
Cable Mesh EG Straight U – 30mm Height – Ø 4mm - Image 2
Cable Mesh EG Straight U – 30mm Height – Ø 4mm - Image 3
Cable Mesh EG Straight U – 30mm Height – Ø 4mm - Image 4
Cable Mesh EG Straight U – 30mm Height – Ø 4mm - Image 5
Cable Mesh EG Straight U – 30mm Height – Ø 4mm - Image 6
Cable Mesh EG Straight U – 30mm Height – Ø 4mm - Image 7
Cable Mesh EG Straight U – 30mm Height – Ø 4mm - Image 8

Cable Mesh EG Straight U – 30mm Height – Ø 4mm

Plage de prix : €2,83 à €6,00

Available on back-order

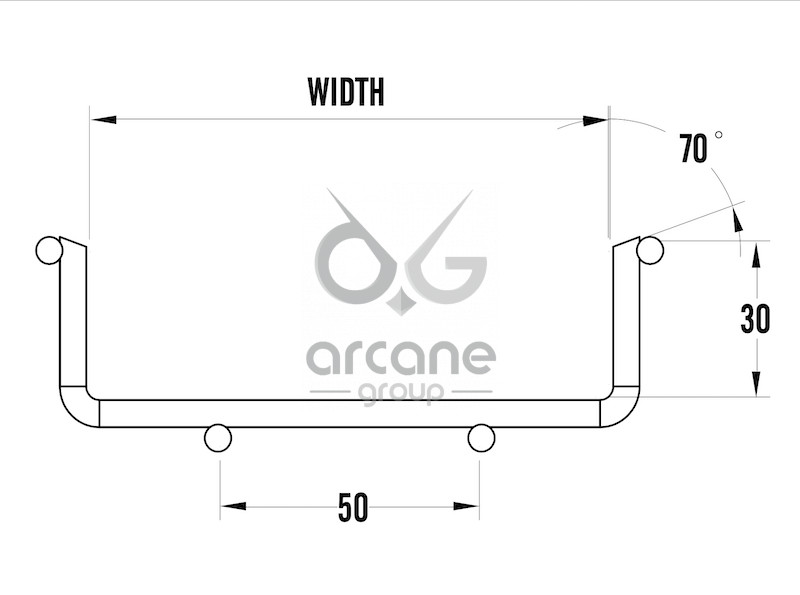

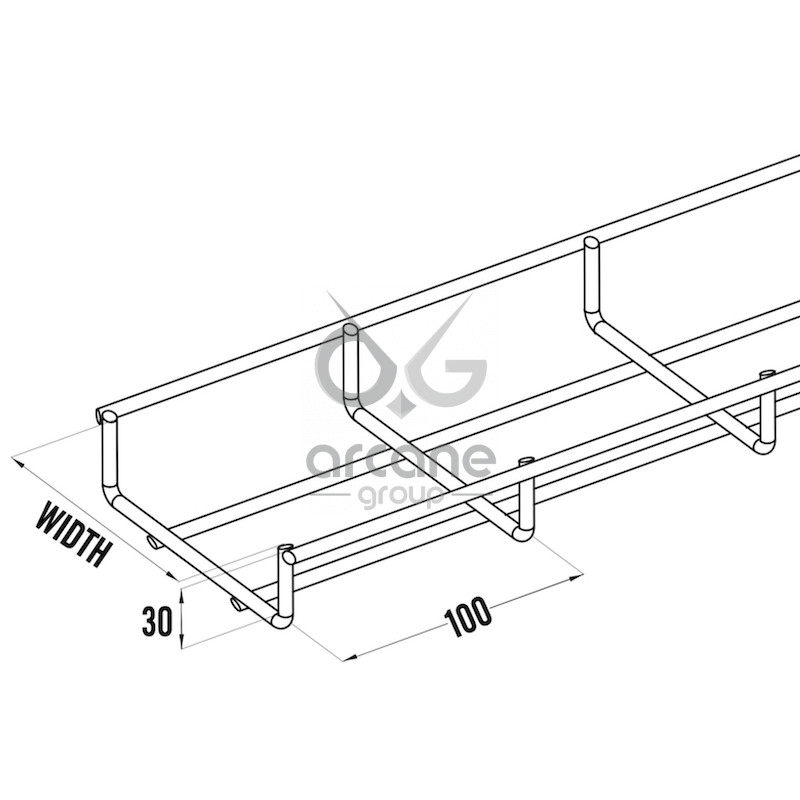

U shape, Straight Section, One section is 3 meters Height is 30mm and Diameter of wire is 4mm To make a straight path

Can be cut manually to make different lengths and angles

All technical files are below under section “Description”, you must be logged-in to see the link to download the file. Go to My Account to sign-in or create an account.

SKU: ND Category: Tag:

Description

This second generation open type wire Cable Mesh, includes indoor and outdoor use-case widely used in installation cable in different telecommunication houses, electricity units and engineering project.

  • Easy installation and labor-saving
  • On-site fabrication
  • Excellent ventilation
  • Maximum strength for minimum weight
  • Reduce dust retention and improve hygiene of the working environment
  • H30 and Ø 6mm, for heavy duty workload possible on demand

Material:

  • carbon steel (Q235B)
  • stainless steel ( 304 / 316L )

Multiple surface coatings:

  • 3 finishes for carbon steel:
    • Electro zinc (EZ) for indoor use
    • hot dip galvanized (HDG) for outdoor use
    • powder coated(PC) (colors up to customer)
  • Acid washing then polished for stainless steel

Wire mesh system designed for LAN, POWER, ALARM cable routing

Designed for data center, computer room, industrial environment

CE and RoHS compliant

Standard 50mm x 100mm mesh for easy length adjustment and compatibility with other brands

Other shapes, sections, heights and colors available

Length of a mesh is 100mm

Width of a mesh is 50mm

Private File - Access Forbidden
Private File - Access Forbidden

Additional information

Weight ND
Dimensions ND
Width

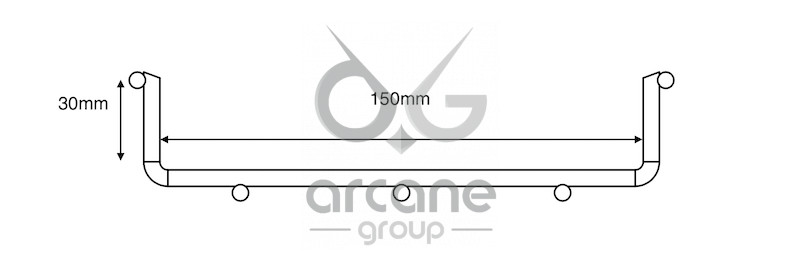

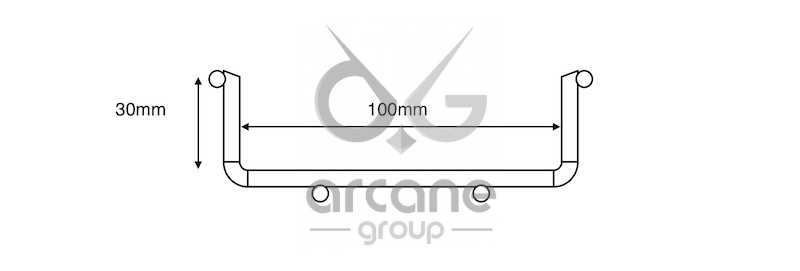

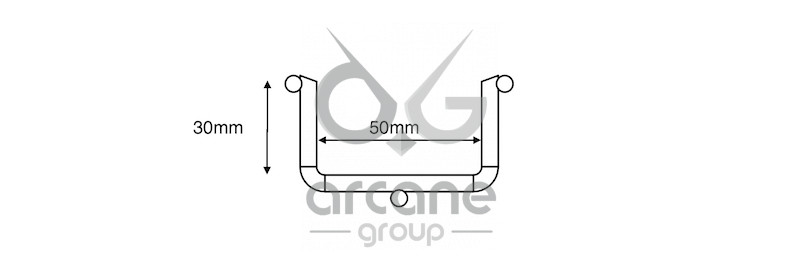

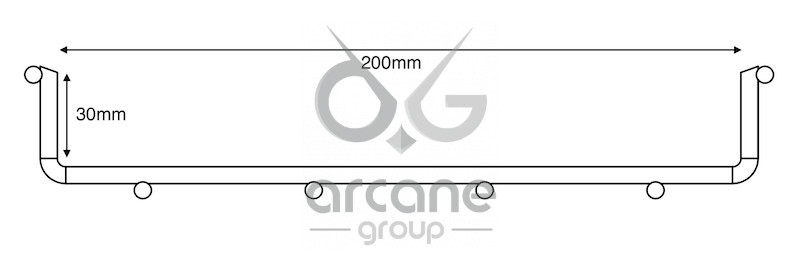

50mm, 100mm, 150mm, 200mm, 300mm
