Sliding Shelf 1U – 24 Ports

Plage de prix : €99,00 à €135,00

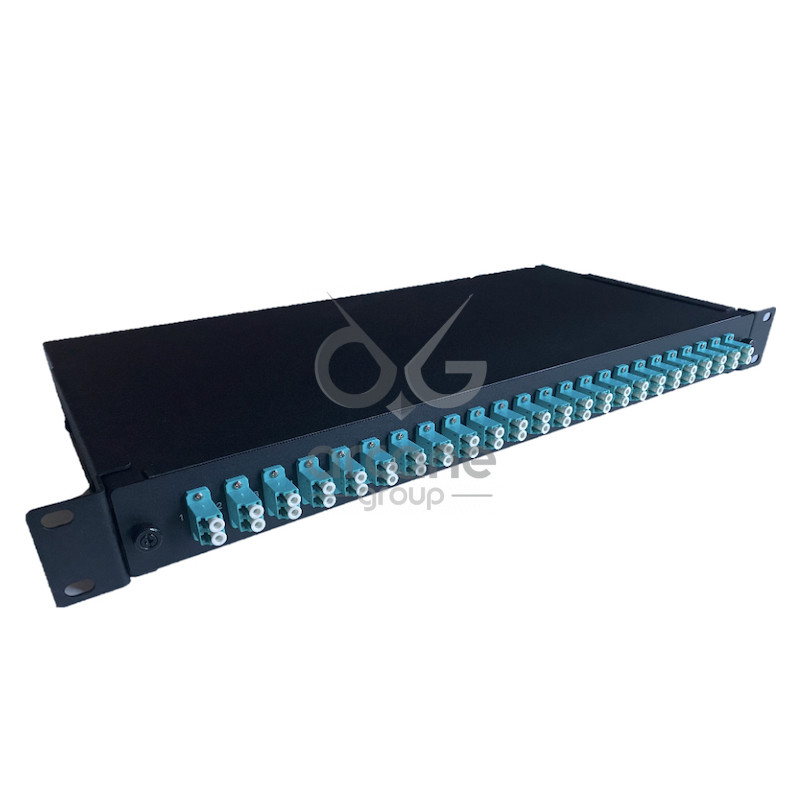

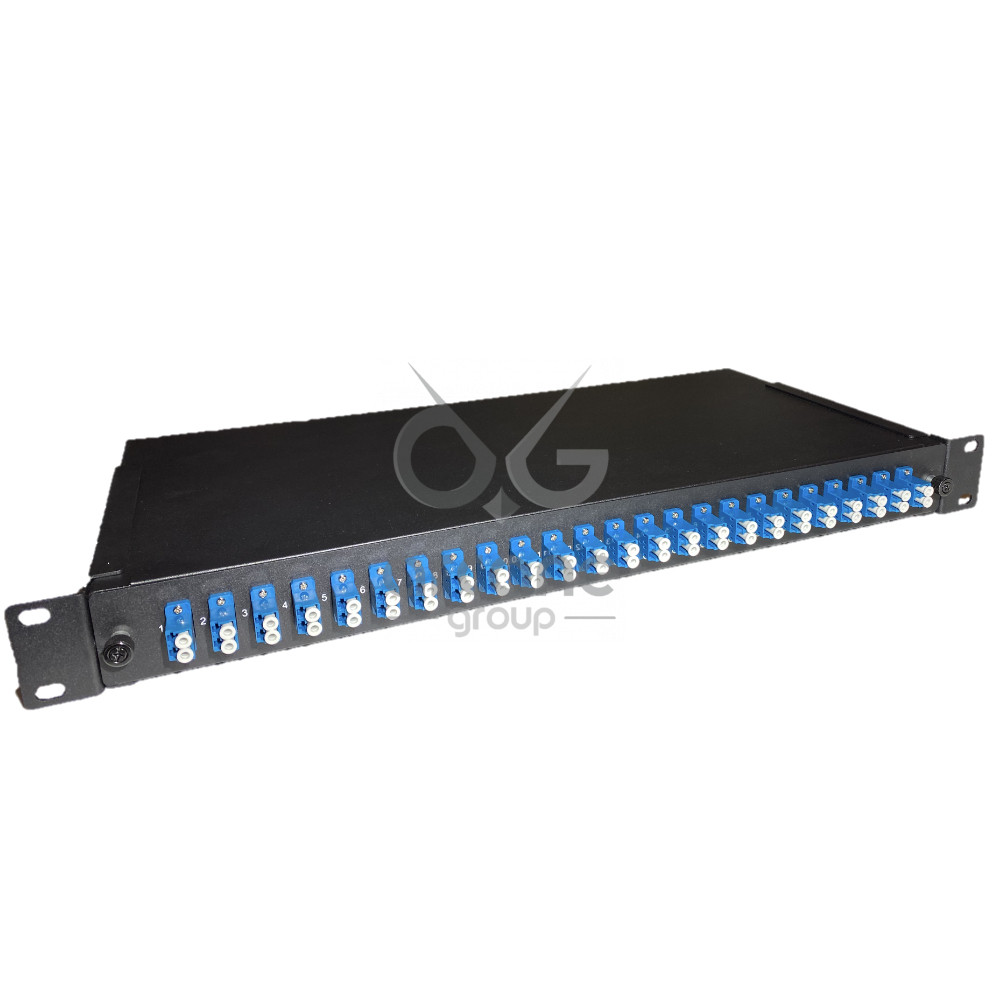

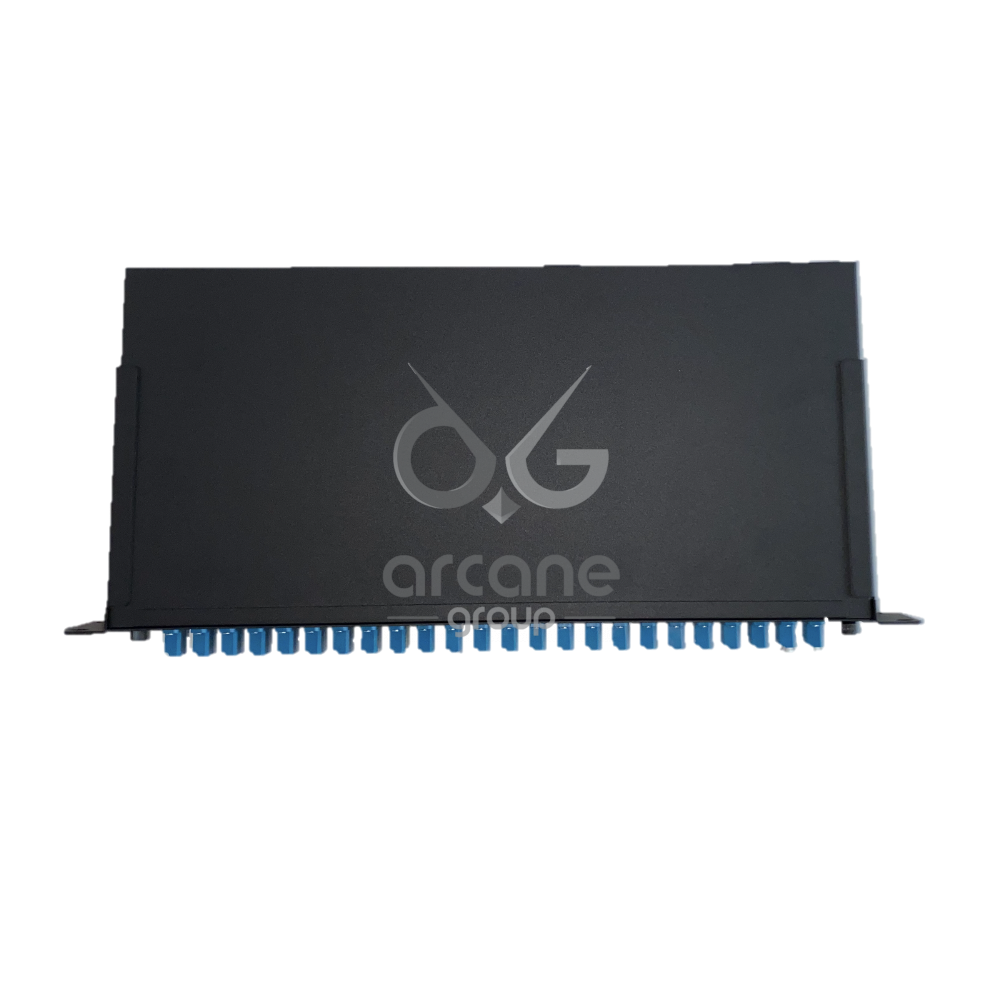

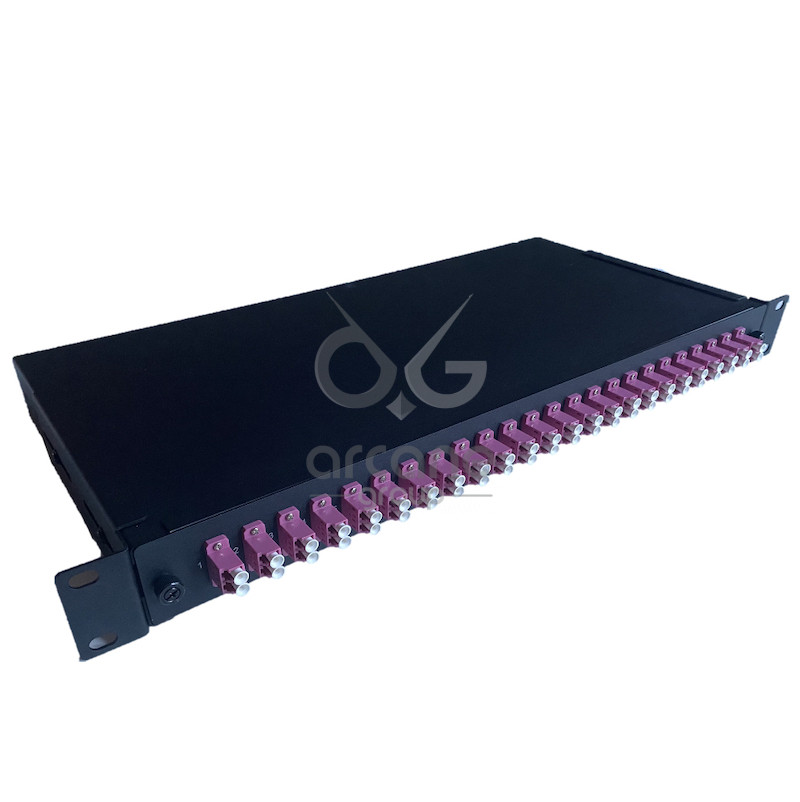

PATCHING SLIDING SHELF 1U

  • Splicing shelf / ODF
  • 1U Rack 19″ mounted
  • from 1 core to 48 cores
  • SC, LC, FC…
  • APC, UPC…
  • SX or DX
  • Combination possible on demand

All technical files are below under section “Description”, you must be logged-in to see the link to download the file. Go to My Account to sign-in or create an account.

SKU: ND Categories: , Tags: , , , , ,

Description

PATCHING SLIDING SHELF 1U

    • 1U Rack mount fiber enclosure

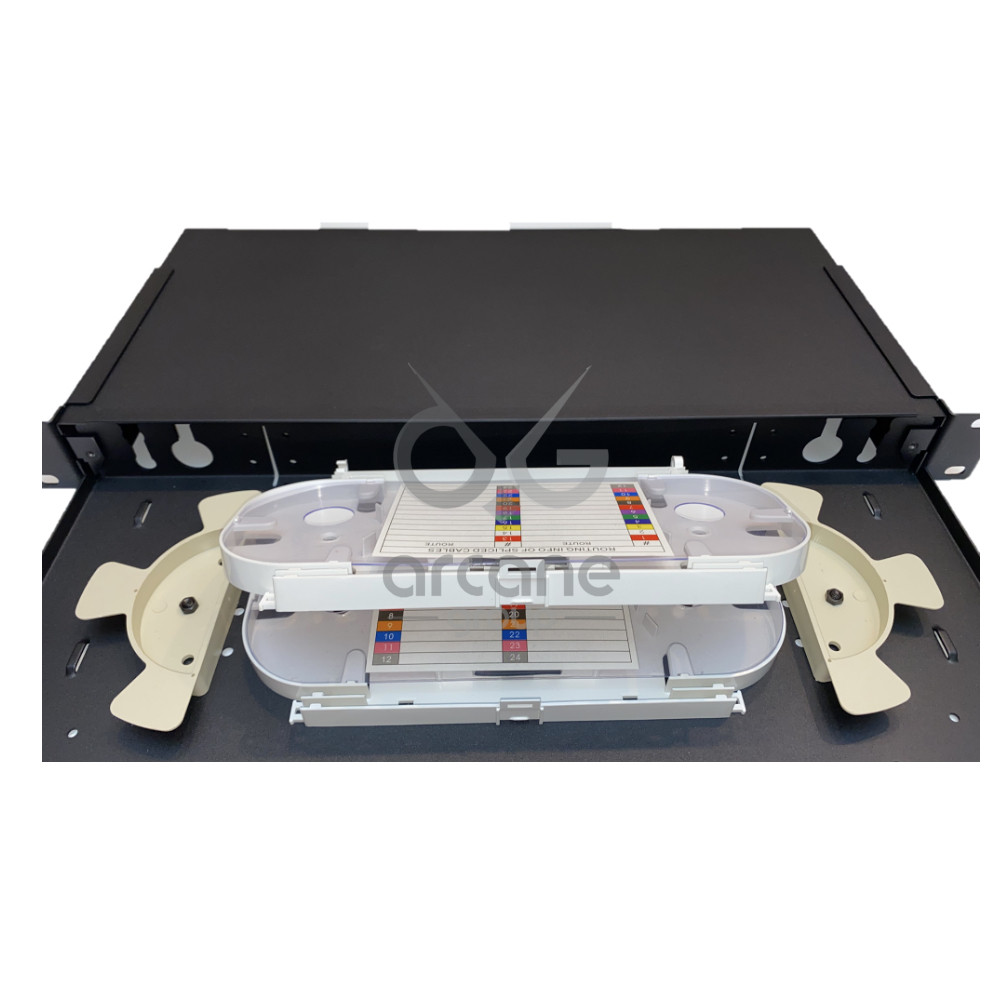

    • Up to 48 splices organized into 2 trays
    • Each tray is protected by cover
    • Removable top tray (second layer) without any tool
    • Easy operation to add cables and splices
    • Main frame is fixed to the rack, allowing inner tray to be removed

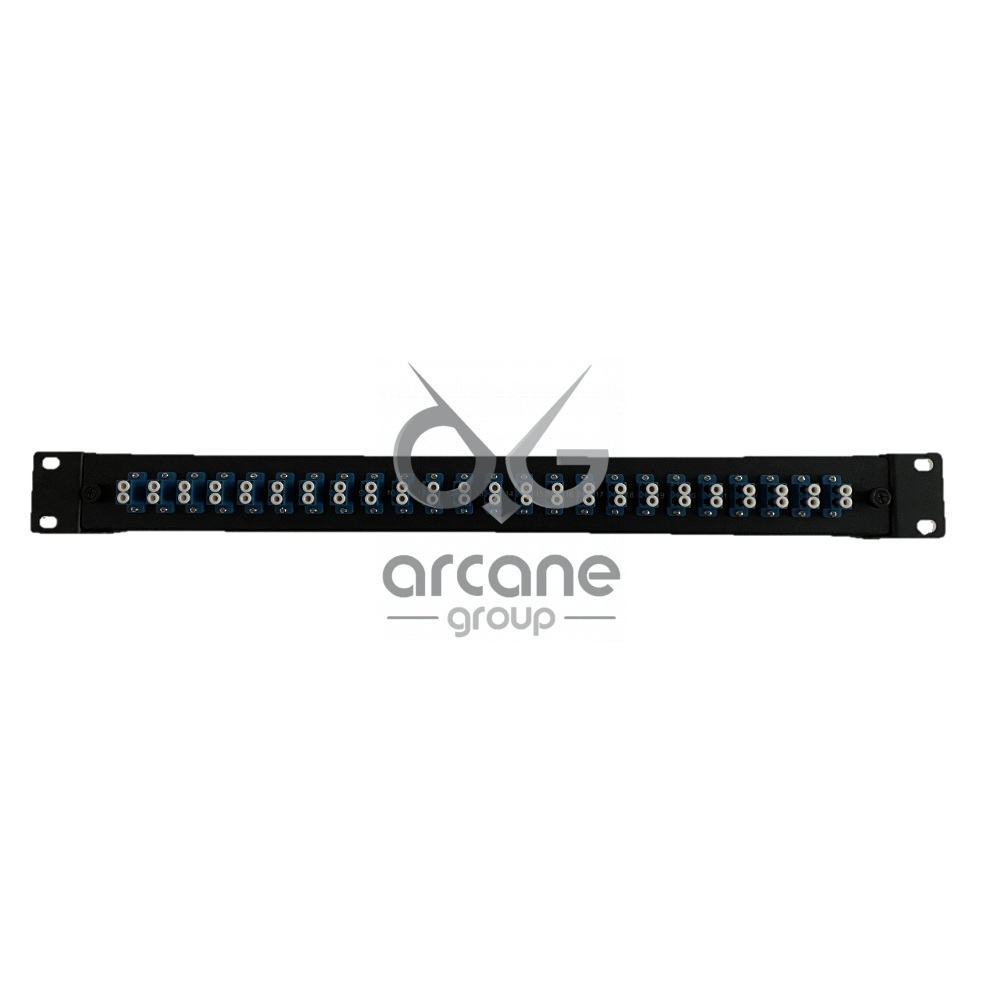

    • 24 ports (holes) for :
      • 24 LCDX
      • 24 SCSX
      • …
    • Coupler could be adapted without opening the enclosure (front operation)
    • Minimal space 1U for 48 connections perfectly secured
    • Delivered with the 2 inner trays and with the 24 couplers mounted
    • Combination possible on demand (12 LCDX OM4 and 12 LCDX OM3…)

Additional information

Weight 2,8 kg

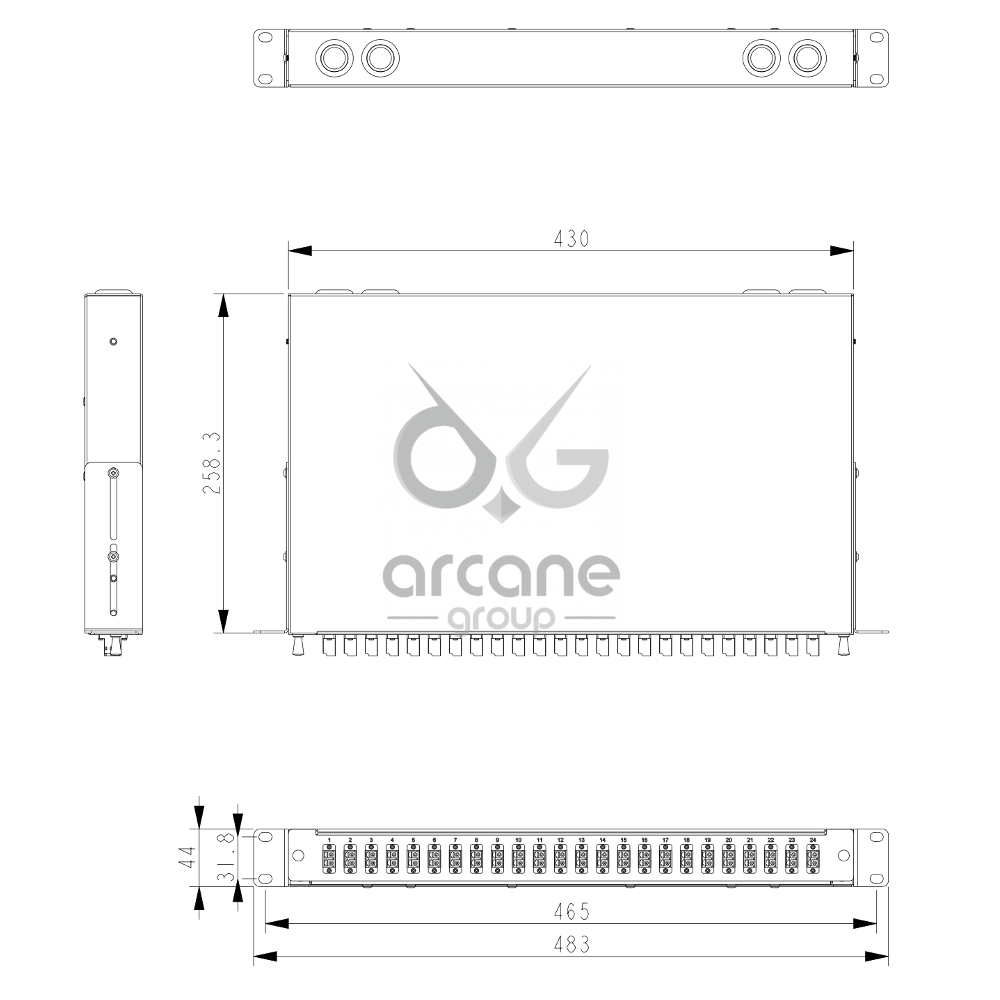

Dimensions 52 × 33 × 6,5 cm
Optical Fiber Connector

LC, LC/APC, LC/UPC, SC, SC/APC
Fiber Type

OM3, OM4, OS2
SX/DX/QUAD

SX, DX
